Carbon Crystal Panel Introduction

Carbon Crystal Panel (scientific name: Bamboo Charcoal Co-extruded Decorative Panel) is a new eco-friendly decorative board made mainly from bamboo charcoal powder, carbon crystal particles and polymer resin (PVC) via high-temperature co-extrusion. It is one of the mainstream wall materials for prefabricated decoration.

1. Core Material & Structure

Adopts multi-layer composite "sandwich" craft:

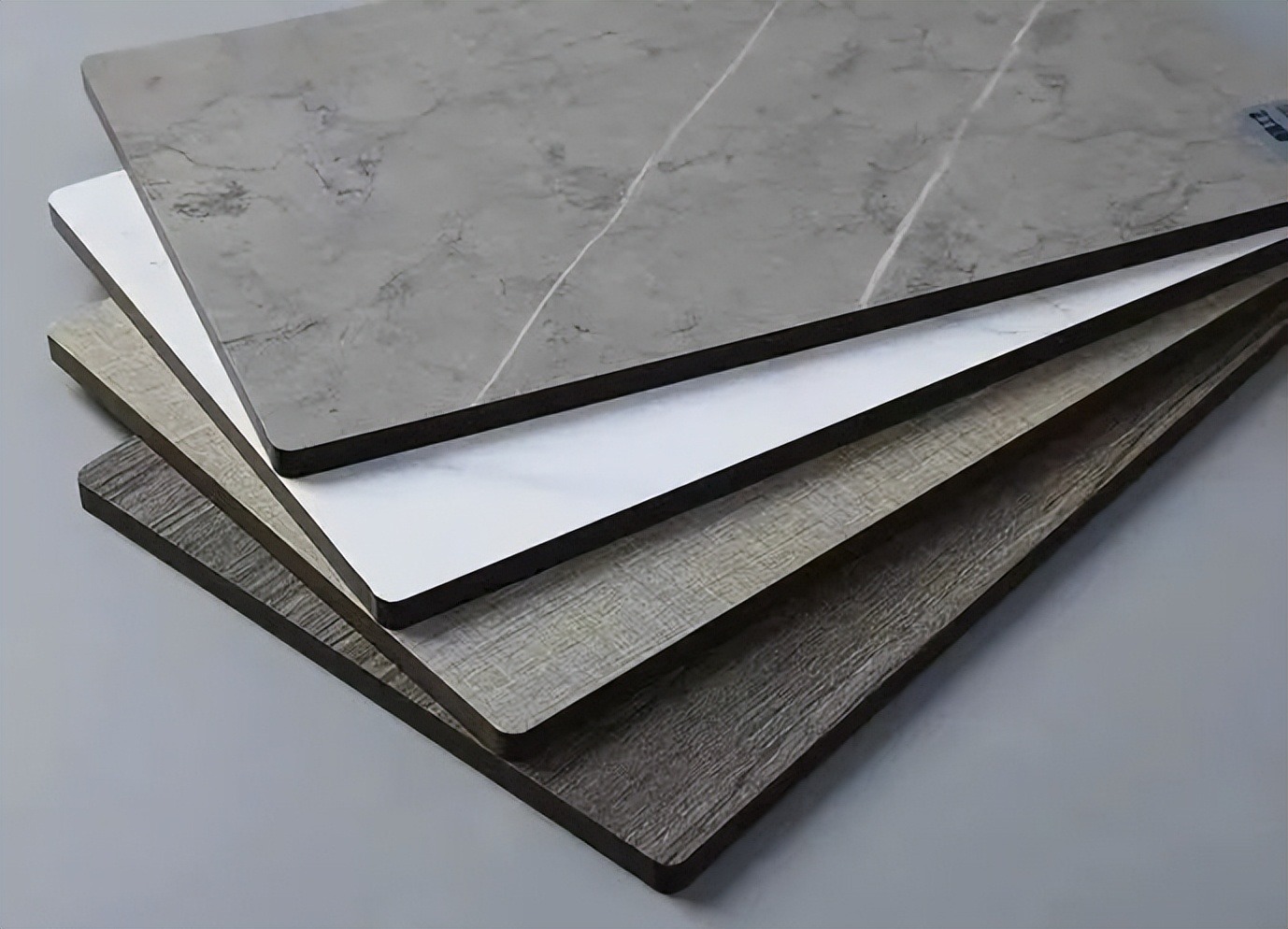

Surface layer: PET/PVC wear-resistant film (wood grain, stone grain, solid color, etc.)

Core layer: Bamboo charcoal powder + resin co-extruded base (determines strength, moisture resistance and eco-friendliness)

Bottom layer: Balance layer (prevents deformation and stabilizes structure)

Thickness: Commonly 3–8mm

Standard size: Large board (1.22m×2.44m, 1.22m×2.8m)

2. Advantages

Eco-friendly & formaldehyde-free: Premium grade reaches ENF/E0 level, no formaldehyde or benzene release, move-in ready after installation

Waterproof & moisture-proof: High density, non-absorbent, no deformation after soaking in water for 24h; suitable for kitchens, bathrooms, basements

Wear & scratch resistant: Mohs hardness 4–7, resistant to scratches from keys or hard objects

Fire retardant: Mostly Class B1 (non-combustible), some reach Class A2

Easy to clean: Oil stains and handwriting wipe off easily; aging-resistant, service life 15–20+ years

Fast installation: Directly installed on bare or old walls, no putty or paint needed, modular quick assembly

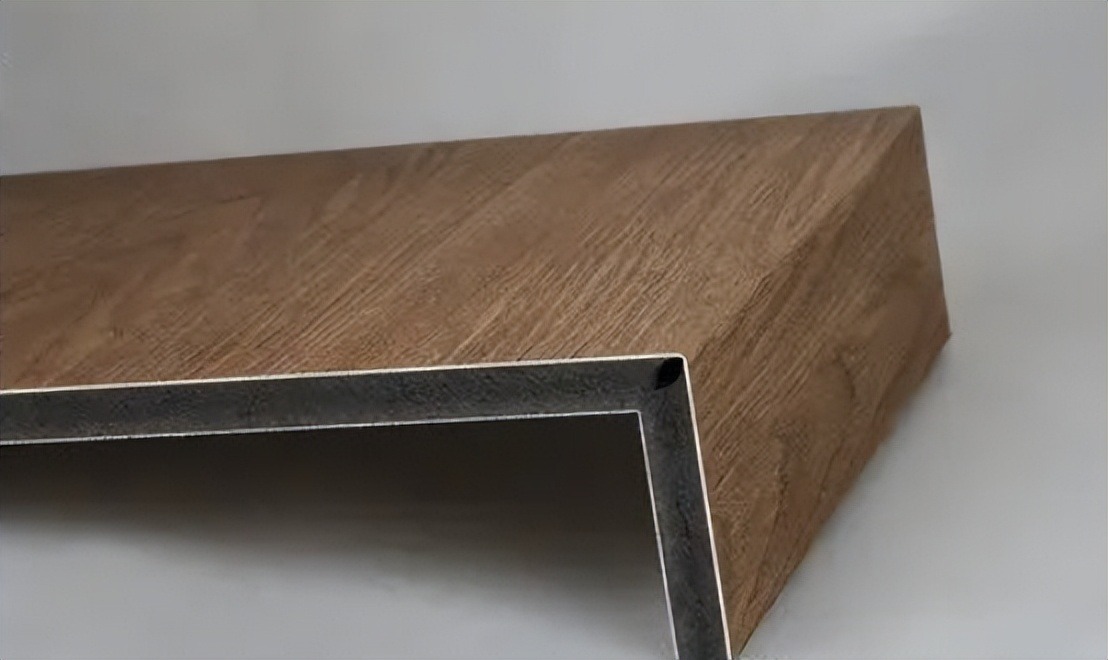

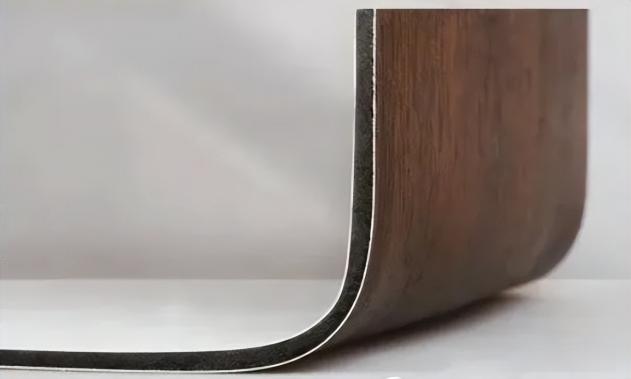

Strong moldability: Groovable and bendable; integrated forming for columns, arcs and external corners

3. Main Categories

Decorative Carbon Crystal Panel (mainstream)

Focus: Appearance and protection; used for walls, feature walls, ceilings, cabinet doors

Heating Carbon Crystal Panel (functional)

Built-in carbon fiber heating layer, heats up when powered + far-infrared therapy

Used for wall / floor heating, bathrooms, yoga rooms

4. Application Scenarios

Residential

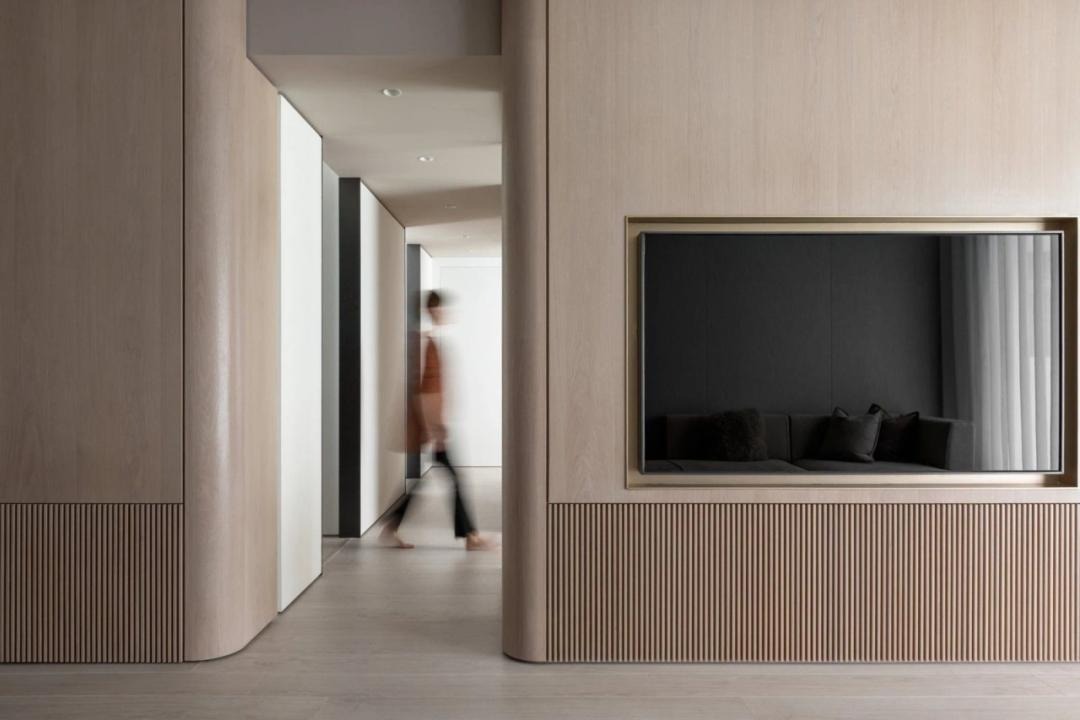

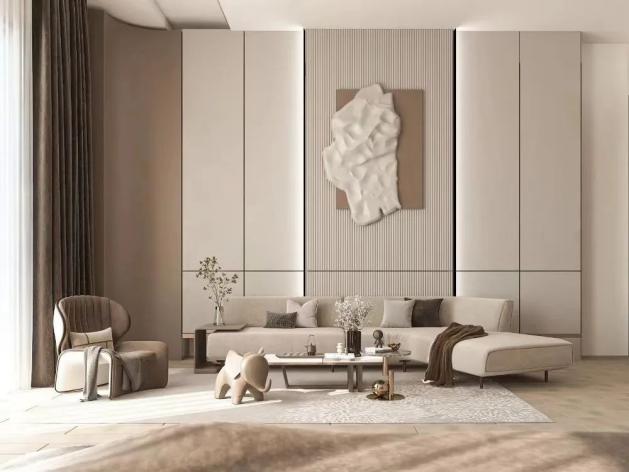

Whole-house walls, TV / bed background walls

Children’s / elderly rooms (eco-friendly, collision-proof, easy to clean)

Kitchen splash walls, bathroom dry areas, balconies, basements

Commercial

Hotels, offices, shops, hospitals, schools

Shopping malls, elevators, corridors (wear-resistant, fireproof, fast installation)

Restaurant kitchens, KTVs, gyms (waterproof, moisture-proof, easy to clean)

5. Carbon Crystal Panel vs Traditional Materials

6. Buying Tips

Check eco-certification: Look for ENF/E0 level test reports

Check thickness: Residential use recommended ≥5mm

Check surface: Thick film, clear texture, no odor, no bubbles

Check base: Dense cross-section, no impurities, no pungent smell

Avoid low prices: Too-cheap panels mostly use recycled materials
