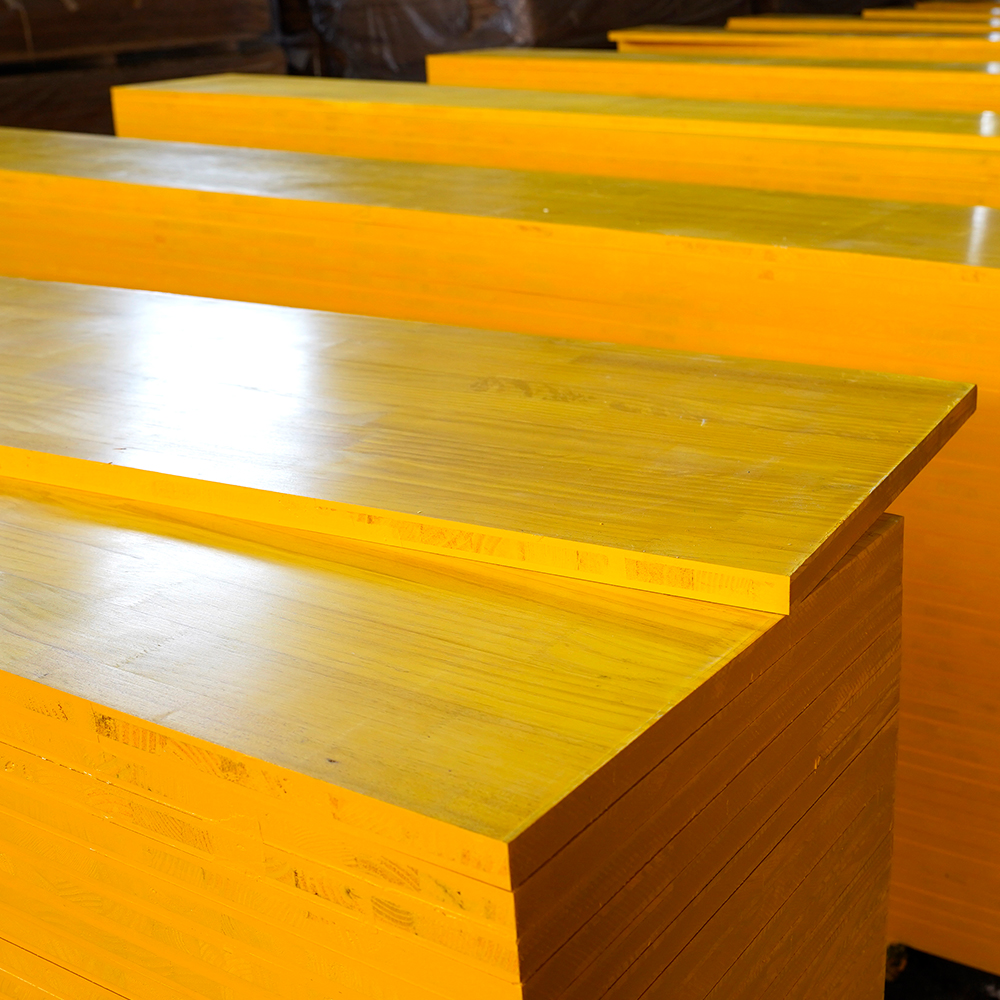

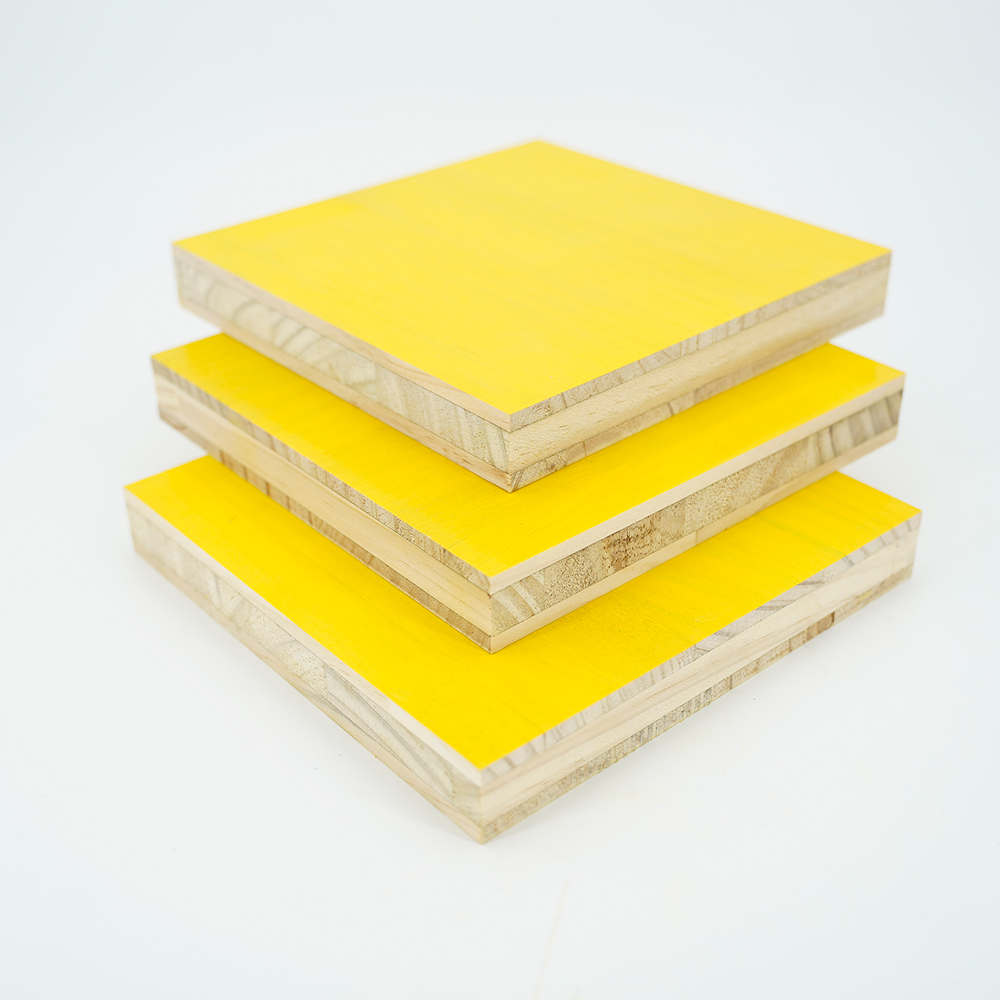

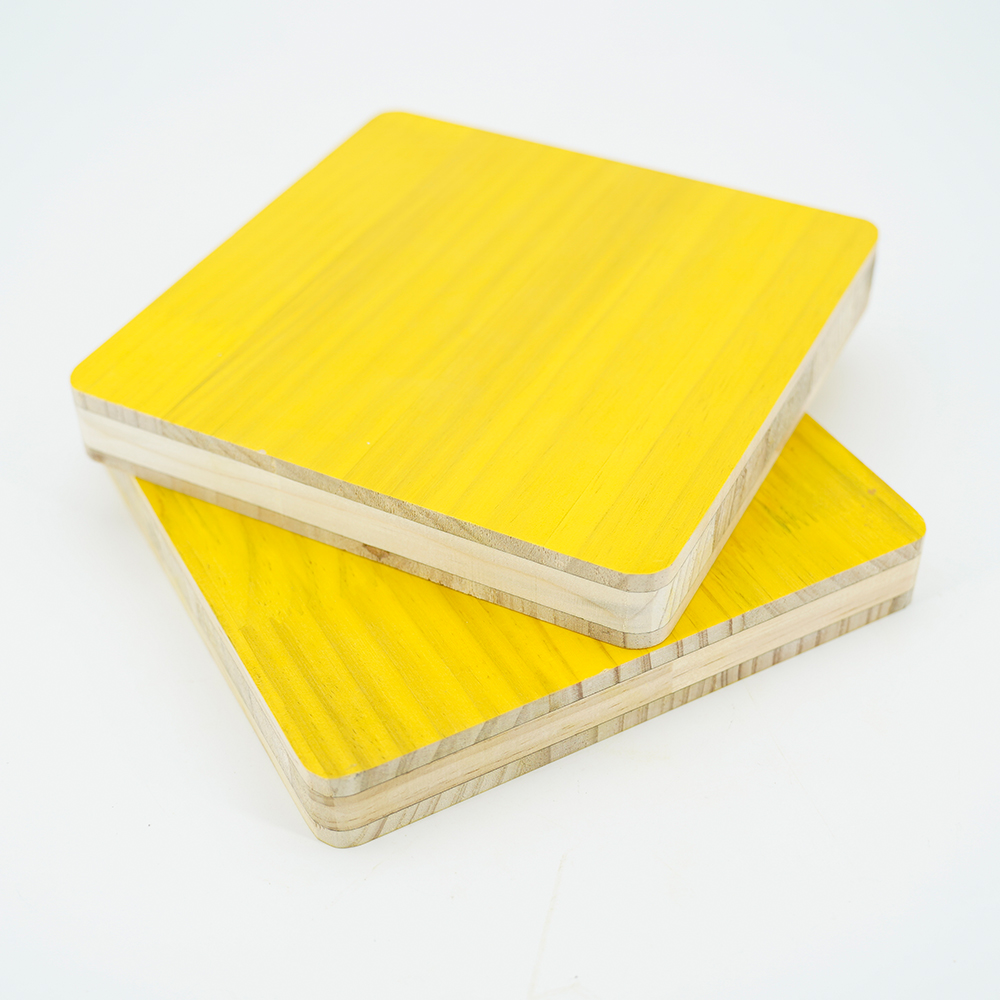

3-PLY Yellow Formwork Plywood is a high-performance construction formwork plywood, specially designed for concrete construction projects. With 3-layer solid wood structure and yellow PP plastic film surface, it features excellent waterproof, wear-resistant, anti-corrosion properties, high structural strength and 15-20 times reusable turnover rate. The demoulded surface is smooth and flat, no need for secondary plastering, which greatly improves construction efficiency. Widely used in high-rise buildings, bridges, water conservancy projects and other concrete construction. We support customized size, thickness and logo, factory direct wholesale export with competitive price.

Parameter

Product Name ： 3-PLY Yellow Formwork Plywood

Material ： Spruce, Pine

Surface ： water-based or oil-based waterproof spray paint

Standard sizes ： 500mm x 1000mm, 500mm x 2000mm, 500mm x 2500mm, 500mm x 3000mm, 1000mm x 2000mm, 1000mm x 3000mm, etc., customizable

Conventional thickness ： 21mm/27mm

Turnover times ： 15-20 Times Reusable

Adhesive grade ： Melamine glue/WBP phenolic glue

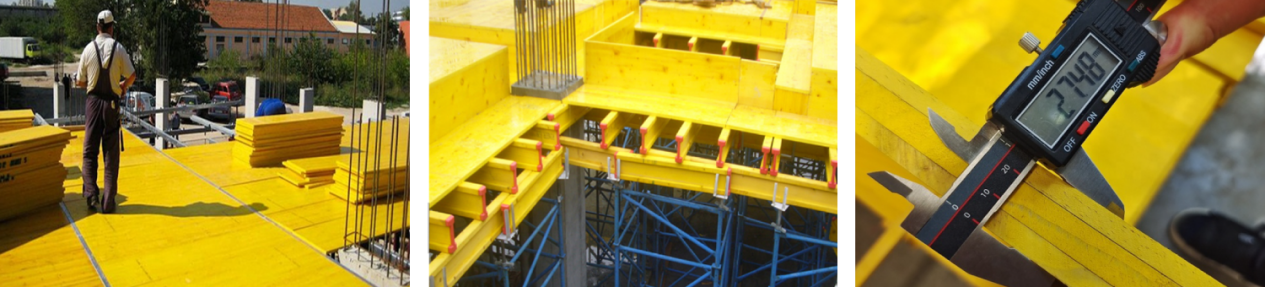

Application scenarios ： High rise Building, Bridge, Water Conservancy Project, Concrete Construction

MOQ ： 1×20GP Container

Delivery cycle ： 7-15 days after deposit

Certification ： CE/ISO9001

Customized Services ： Customized Size, Thickness, Logo&Packing Available

Message

Product Detail


FEATURE

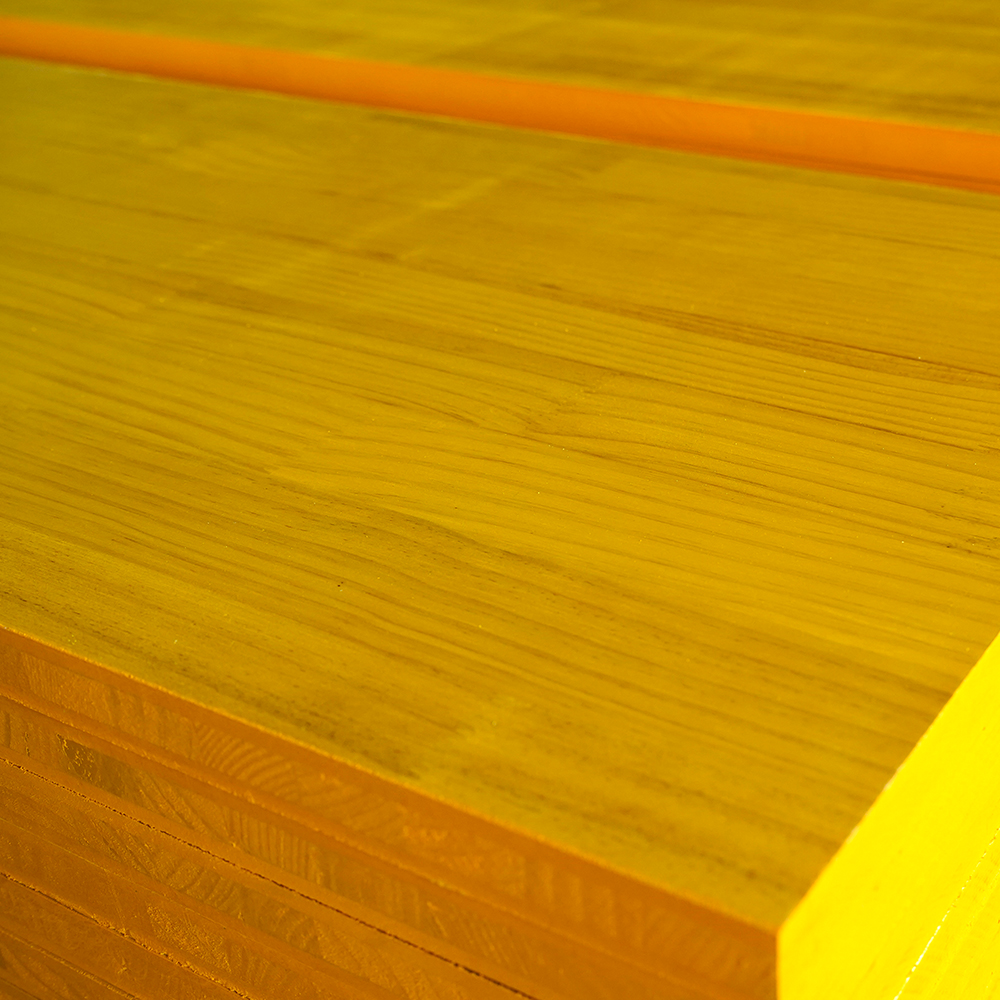

Smooth surface:

The surface of the formwork is coated with yellow paint or covered with yellow melamine film, resulting in a flat and smooth surface. This allows the surface of the poured concrete to achieve the effect of fair-faced concrete, eliminating the need for secondary plastering and other treatments.

Good waterproof performance:

Due to the use of waterproof glue and the presence of a coating or paint on the surface, the formwork exhibits excellent waterproof performance, making it less prone to delamination and blistering when used in humid environments.

High strength:

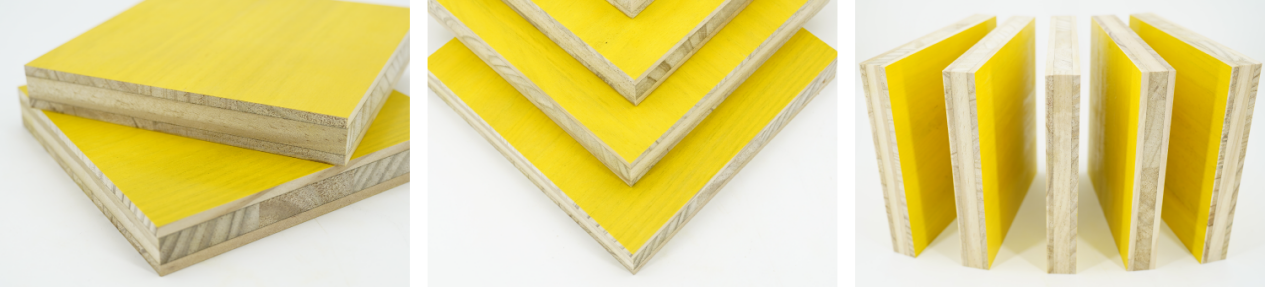

The design of a three-layer structure, coupled with the use of high-quality wood and glue, endows the formwork with high strength and toughness, enabling it to withstand significant lateral pressure from concrete and resist deformation.

Easy to process:

It can be processed like wood, such as sawing, planing, drilling, tenon and mortise joint making, and nailing, making it convenient for construction workers to cut and splice according to the needs of the project.

Environmental friendliness:

Some of the templates are made of wood that meets FSC forest resource certification standards and are recyclable and reusable, demonstrating a certain degree of environmental friendliness.

Name	3- Ply Yellow Shuttering Panel for Construction
Width	500mm,1000mm
Size	2000mm--4000mm, as requested
Thickness	21mm/27mm, as requested
Tolerance	+/-0.5-1mm
Glue	Phenolic Wbp,Melamine
Core material	Pine, spruce, radiata pine,or as requested
Color	Yellow Painting
Density	500~650kg/cbm
Moisture Content	10%-14%
Grade	AA. BB
Usage	Formwork

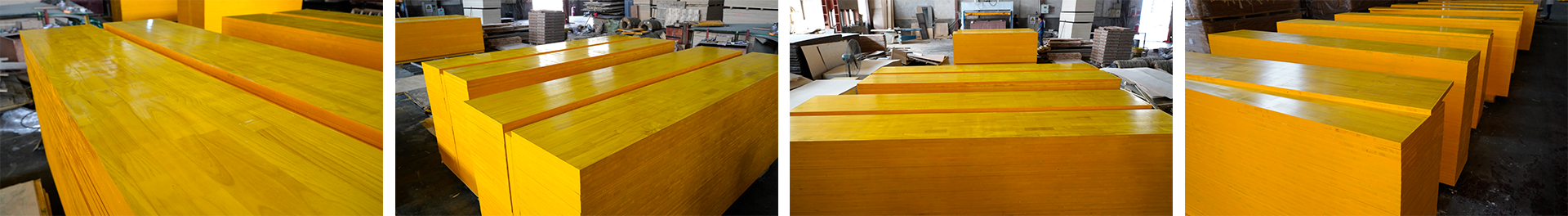

Packing	Standard export pallet package or as requested

ADVANTAGE

High construction efficiency: The formwork is easy to demould, without the need to apply release agent. It can be easily removed by gently tapping the formwork, which greatly shortens the time required for formwork removal, accelerates the project progress, and saves labor costs.

Long service life: High-quality 3-layer yellow construction formwork can be reused 15-25 times or even more normally. Compared to ordinary construction formwork, it has a higher turnover rate, reducing engineering costs.

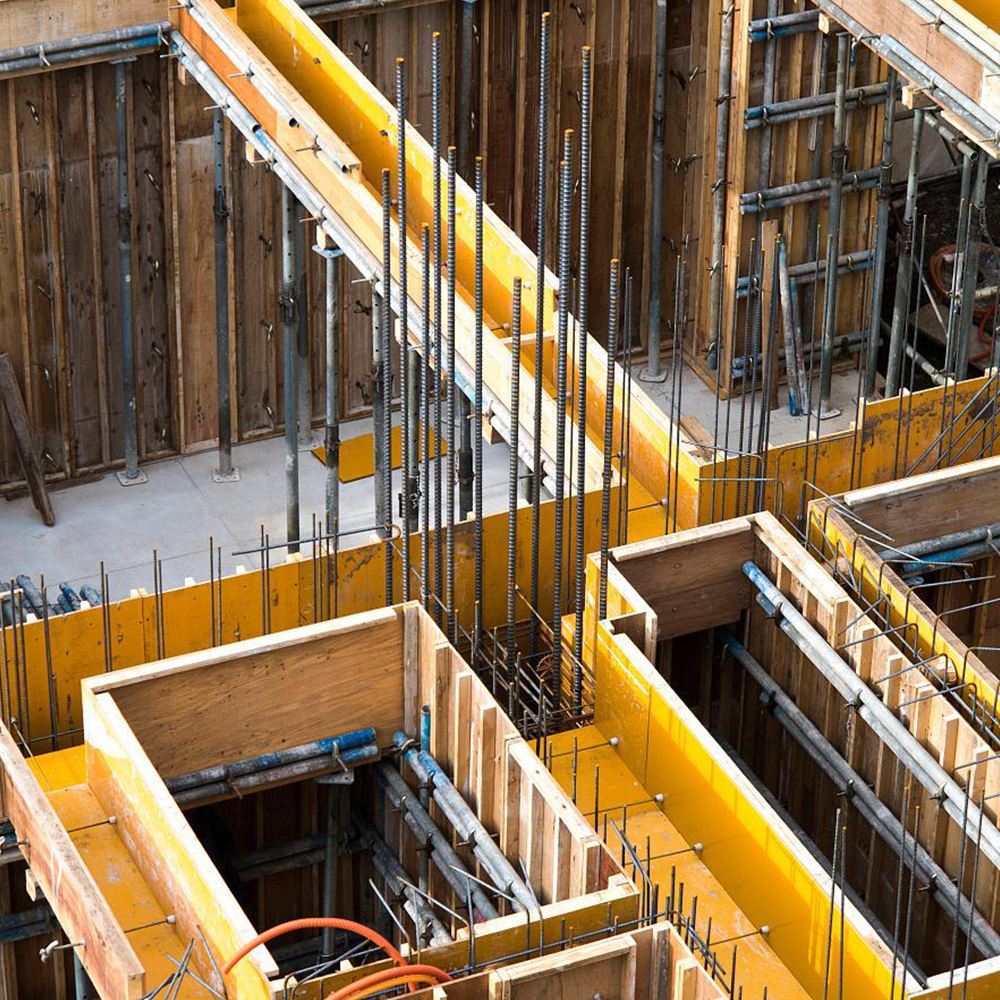

Wide range of applications: It can be used for construction scaffolding, building footplates, building beams, etc., and is suitable for various construction projects such as housing construction, bridges, tunnels, etc.
