Outdoor Cladding Panel is mainly made of wood powder/plant fiber and HDPE (high-density polyethylene) as raw materials, with the addition of UV stabilizers, mold inhibitors, compatibilizers and other additives. It is extruded into an outdoor decorative board with wood like texture and plastic weather resistance characteristics. It is an upgraded substitute product for traditional wood buckle board and PVC buckle board, widely used in outdoor ceiling and wall decoration.

Length: 2000-6000mm
Width: 100-200mm
Thickness: 8-20mm
Splicing method: Enterprise mouth type/buckle type/flat mouth type
Moisture content: ≤ 0.5%
Static bending strength: ≥ 18MPa
Nail holding force: ≥ 800N
Impact strength: ≥ 15kJ/m ²
Applicable temperature: -30 ℃~70 ℃
UV resistance level: ≥ 4 levels
Mold proof grade: 0-1 grade
Salt spray resistance: ≥ 500h
Formaldehyde release amount: not detected
Recyclability rate: 100%
Fire rating: B1 level
Compliant with standards: EU REACH, ASTM D7032

Message

Detail

Highlight advantages

Super weather resistance: non absorbent, non rotting, non moldy, non insect infested, with a service life of 15-25 years, far exceeding traditional wooden buckle boards.

Maintenance free: No need for painting, waxing, anti-corrosion renovation, daily rinsing with water or wiping with a damp cloth, low maintenance cost.

Environmentally friendly and renewable: The raw materials are made of recycled wood powder and plastic, and the finished products are 100% recycled and reused, with no formaldehyde emissions, making them green and safe.

Easy installation: lightweight (about 2/3 of solid wood), snap on splicing, can be quickly installed by ordinary workers, and can be disassembled and reused.

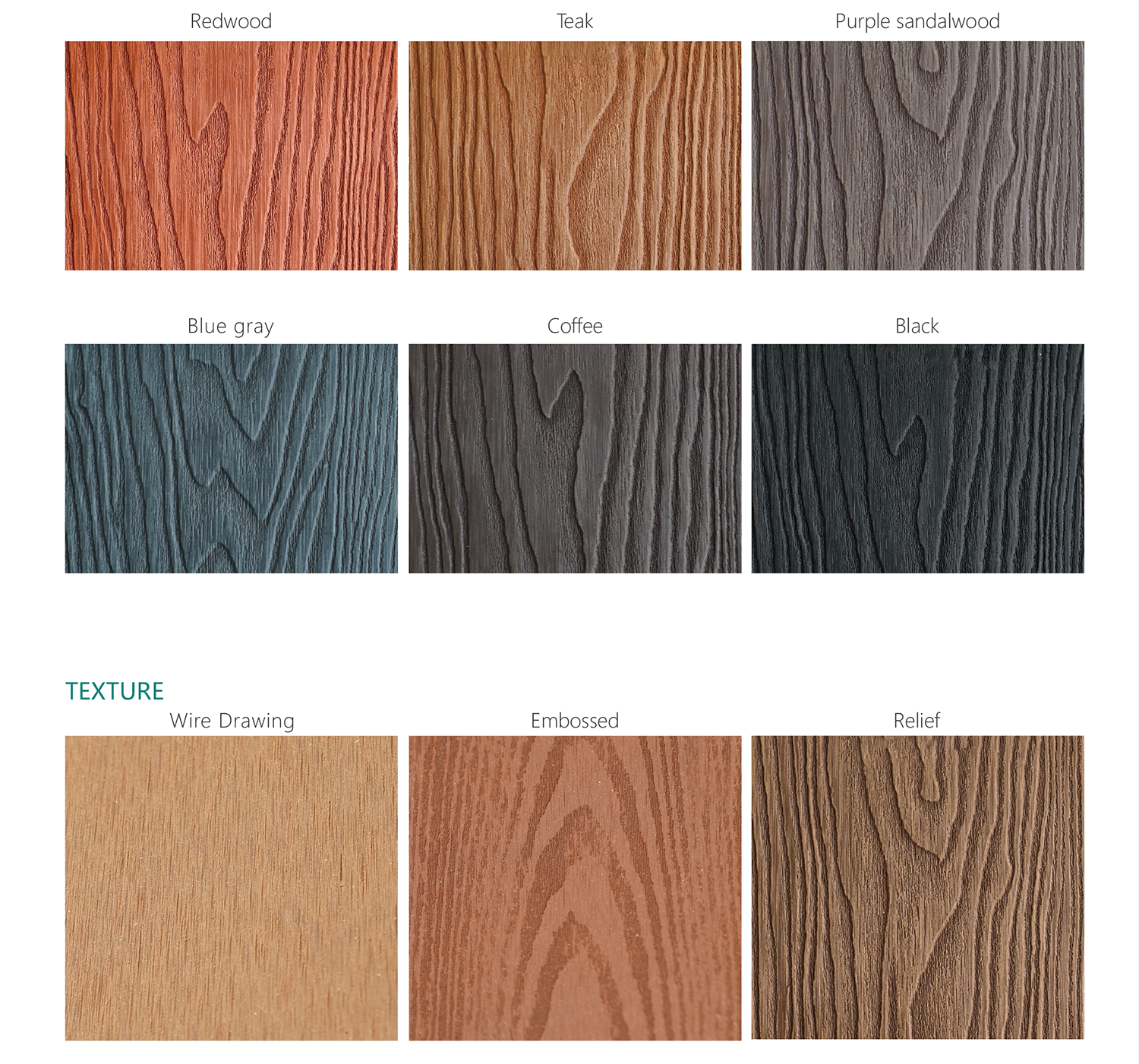

Highly decorative: can simulate textures such as oak, teak, cedar, etc., with rich colors, suitable for modern, pastoral, and new Chinese styles.

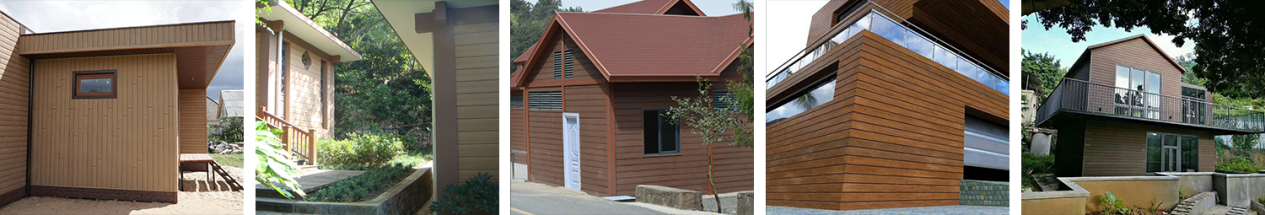

Application scenarios

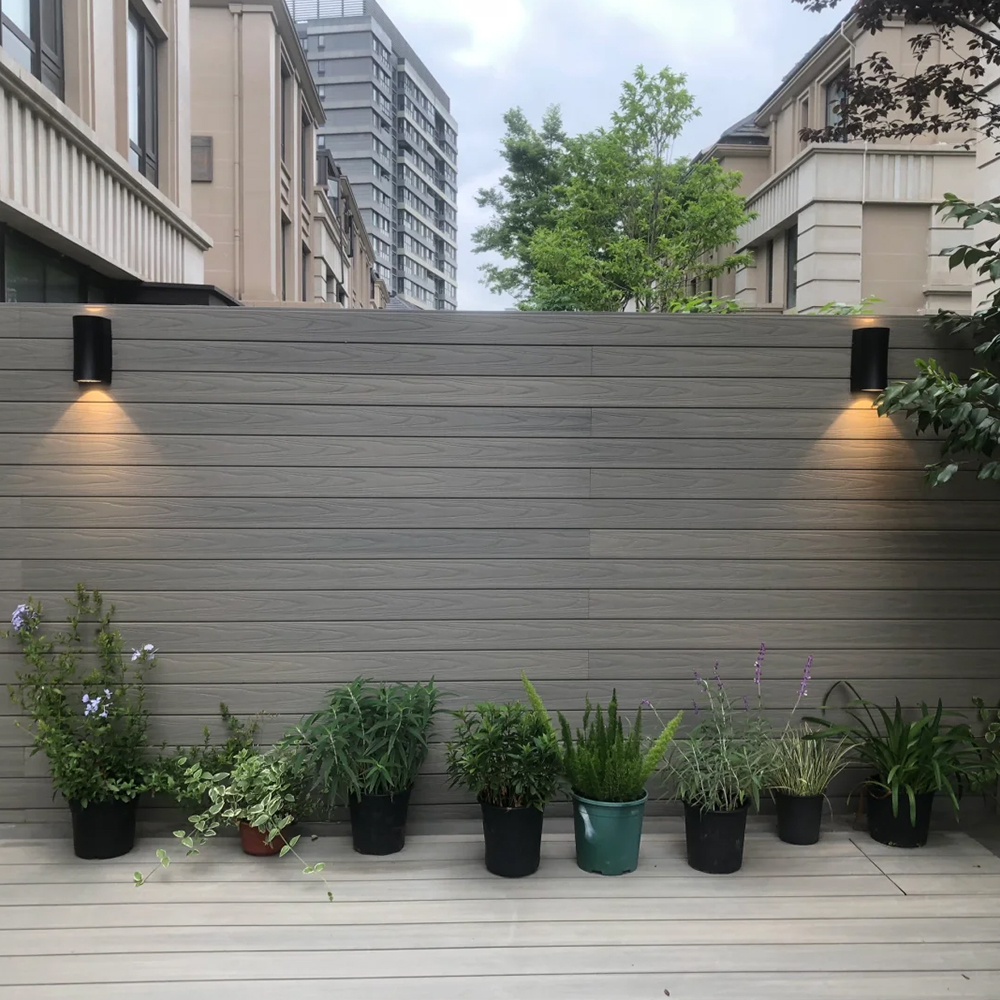

Outdoor home: villa courtyard ceiling, terrace sunshade, garden porch, sunroom exterior wall.

Commercial leisure: Outdoor restaurant/caf é ceilings, scenic area homestay exterior walls, cultural and tourism town landscape walls.

Public facilities: Landscape ceilings in parks/squares, outdoor corridors in schools/nursing homes, and decoration of municipal green isolation belts.

Special environment: exterior walls of buildings, waterfront platform guardrails, and anti-corrosion decorations around sewage treatment plants in coastal high salt spray areas.

Key points for installation and maintenance

It is recommended to use 304 stainless steel or galvanized steel for the keel, with a spacing of 400-600mm to ensure flatness and firmness.

Strictly reserve expansion joints to avoid thermal expansion, contraction, and arching.

Stainless steel or aluminum alloy is preferred as accessories to prevent rusting.

routine maintenance

Regularly rinse with clean water, wipe stubborn stains with neutral detergent, and avoid strong acids and alkalis.

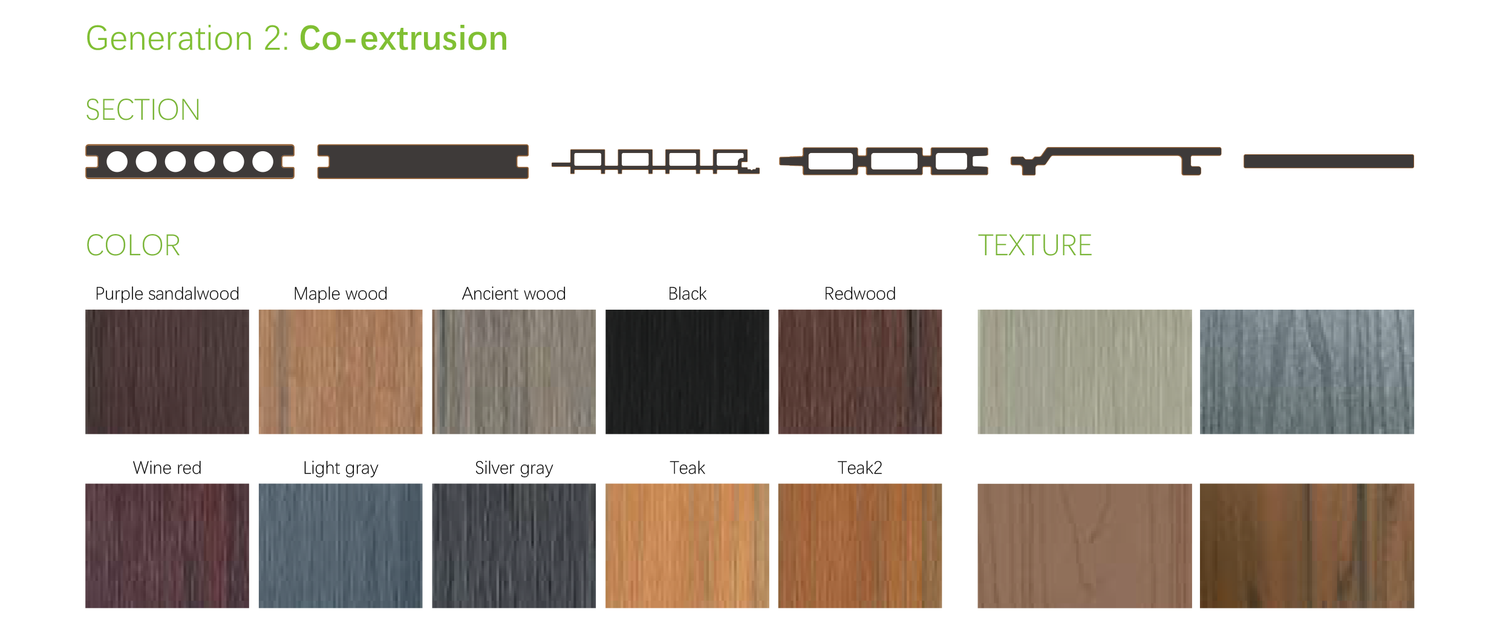

To avoid scratching the surface with sharp objects, co extruded products can be regularly coated with wood plastic special maintenance agents to enhance UV resistance.
