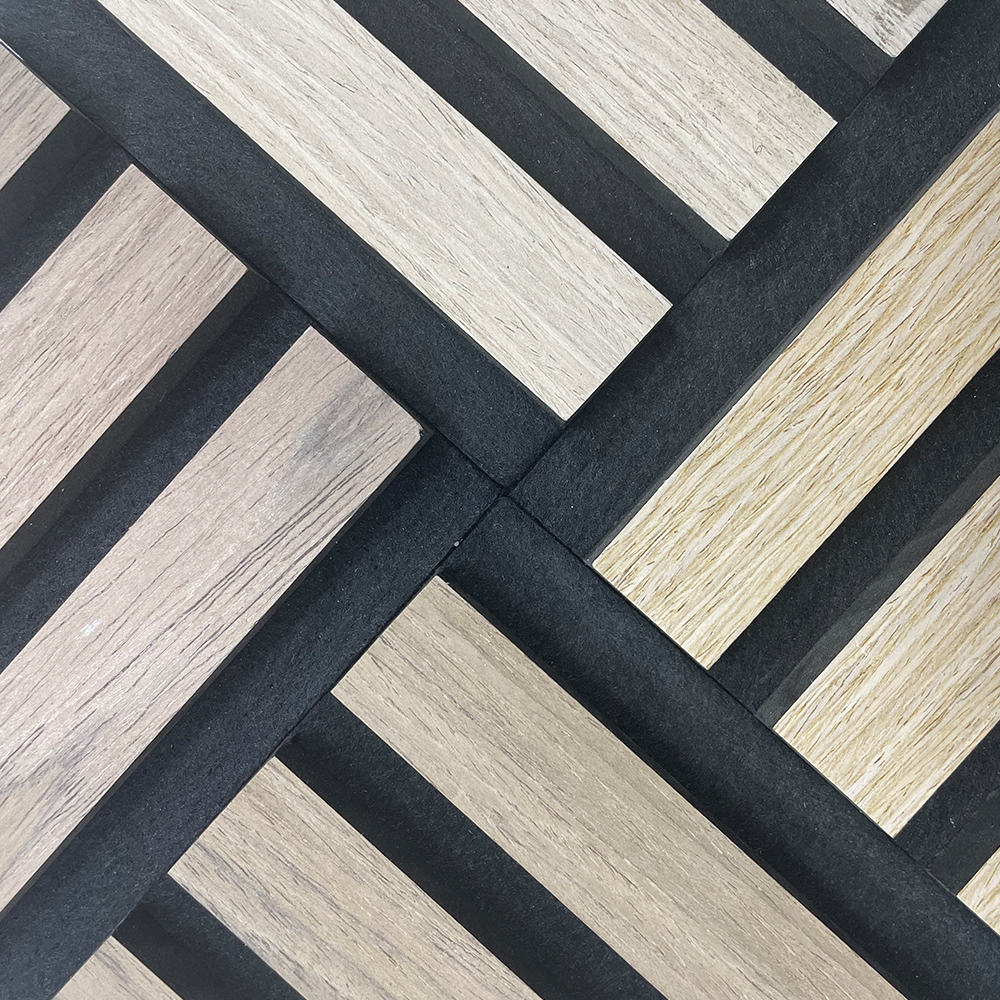

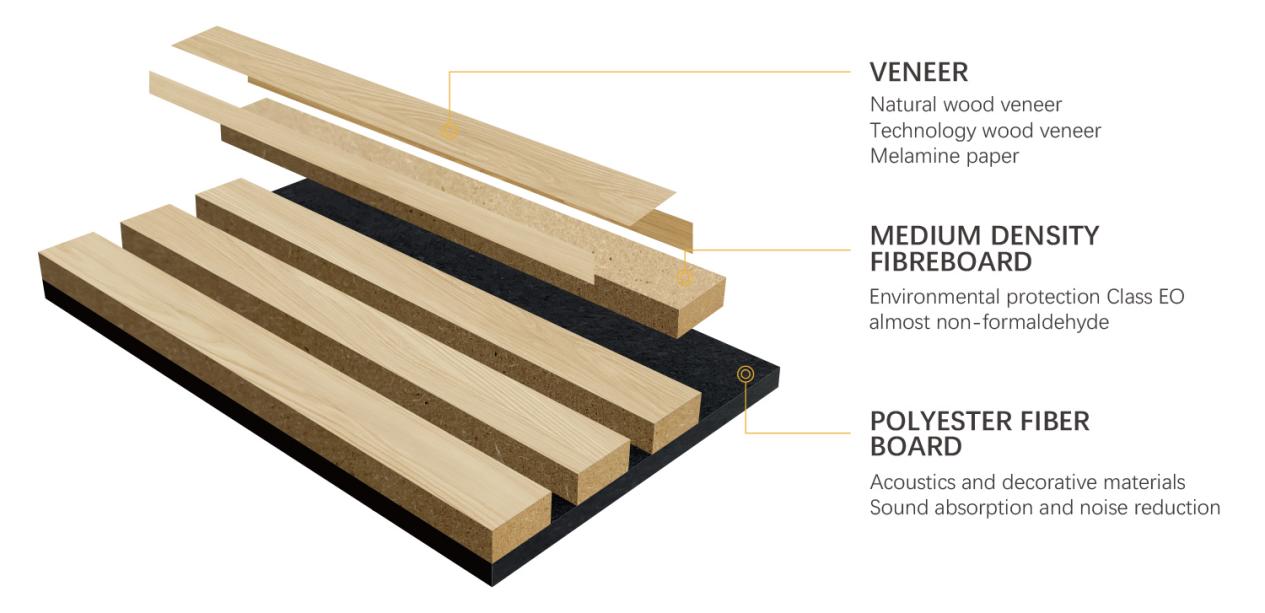

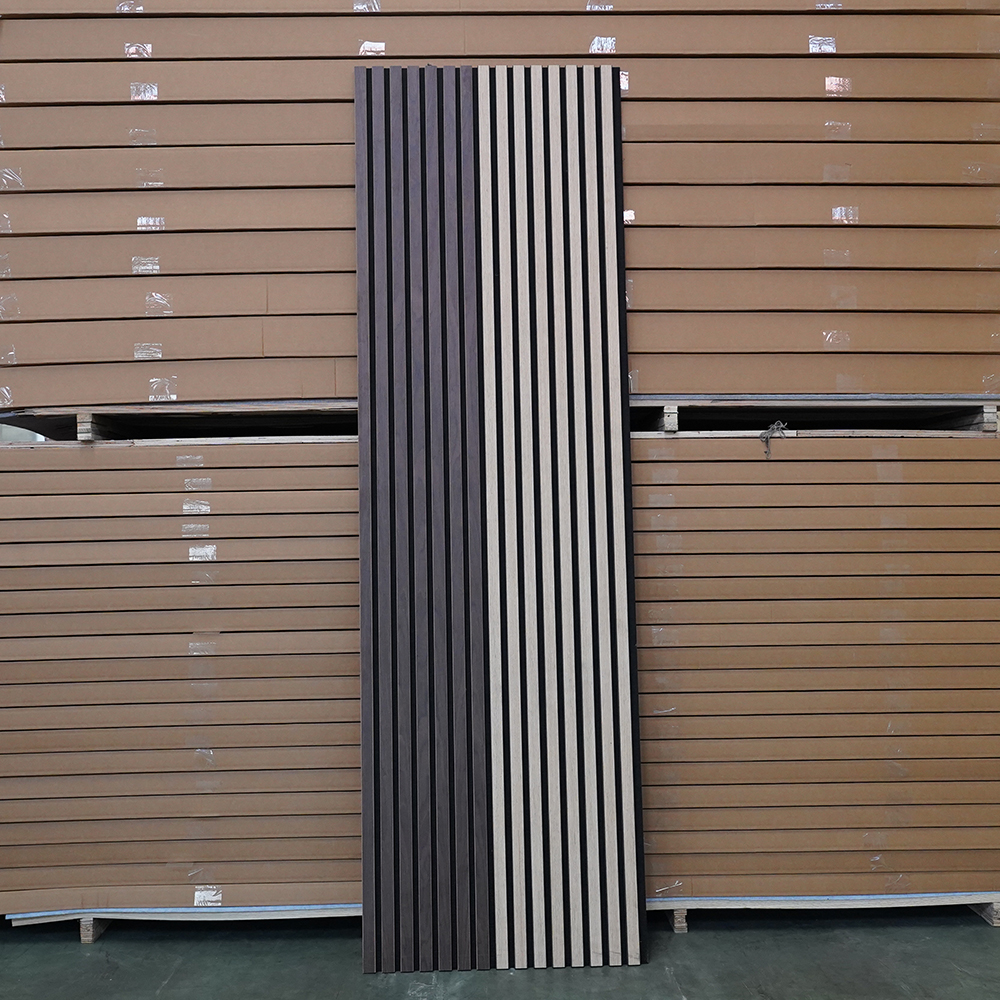

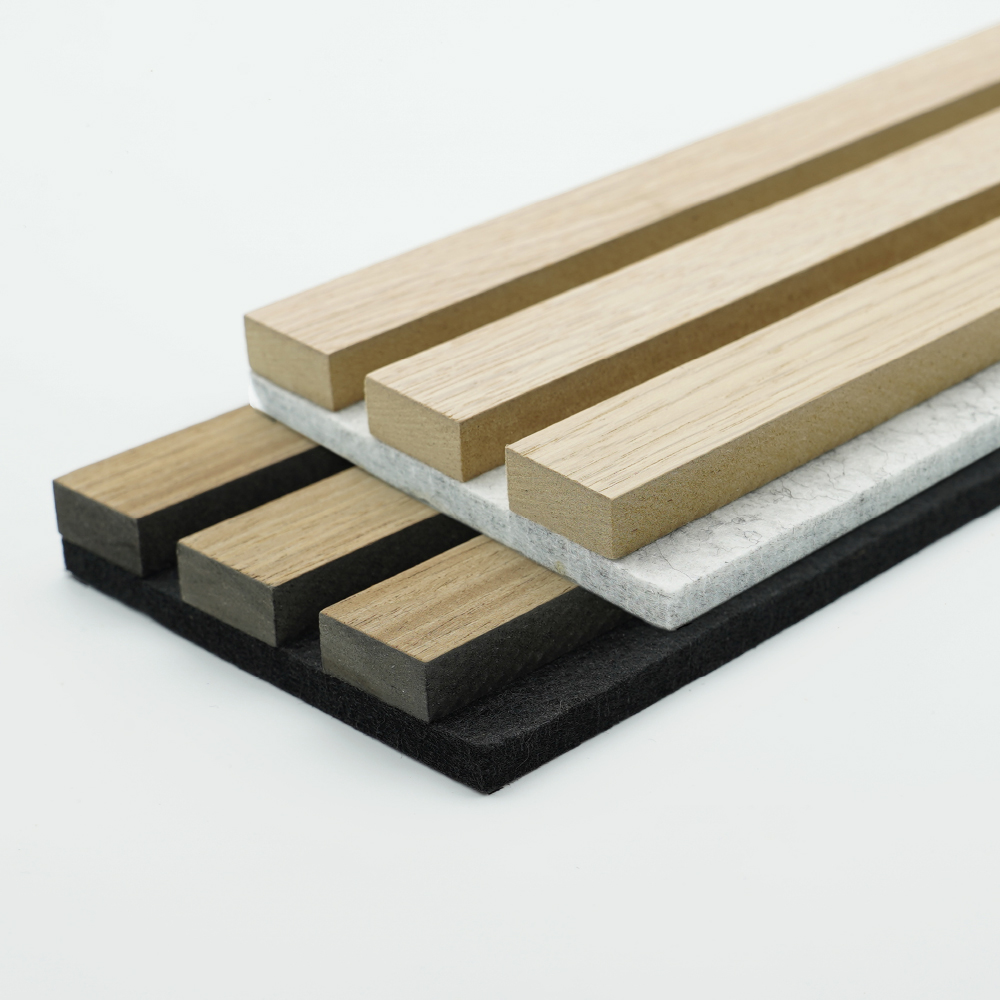

MDF sound-absorbing board usually refers to a board made of high-density polyester fiber as the substrate, with MDF (medium density fiberboard) wood strips embedded on the surface, and processed by melamine paper or technology wood veneer veneer, which has sound-absorbing function.

Sound absorption and noise reduction
Environmentally friendly and formaldehyde free

Length: 2400/2700/2800/3000 mm
Width: 285/405/605 mm
Thickness: 18/21/24mm
Message
Detail


MDF polyester fiber sound-absorbing board is a material that combines sound-absorbing and decorative functions, widely used in the fields of construction and interior decoration.



Material
MDF & PET
Finish
Paper or wood veneer

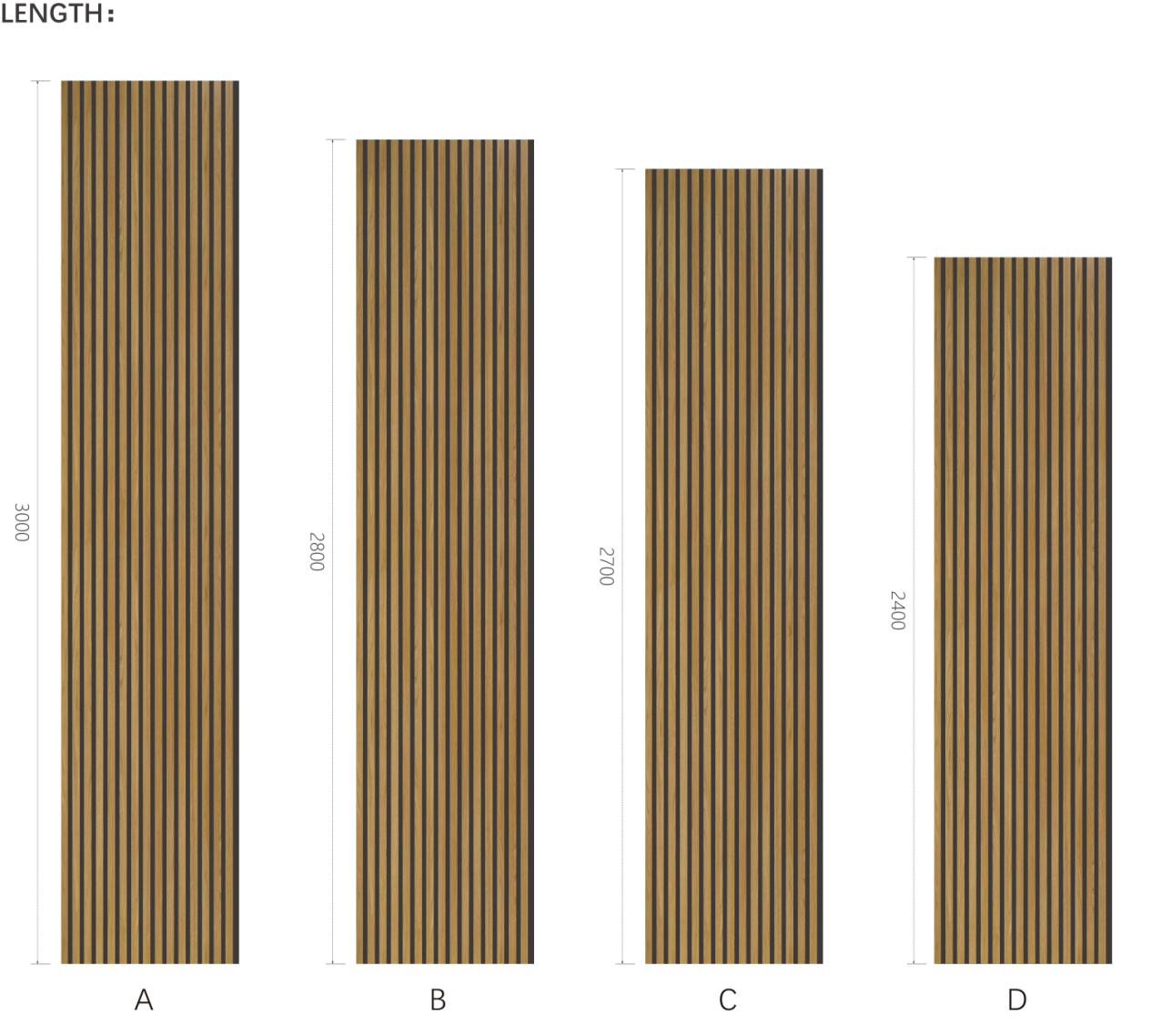

Length
2400/2700/2800/3000 mm

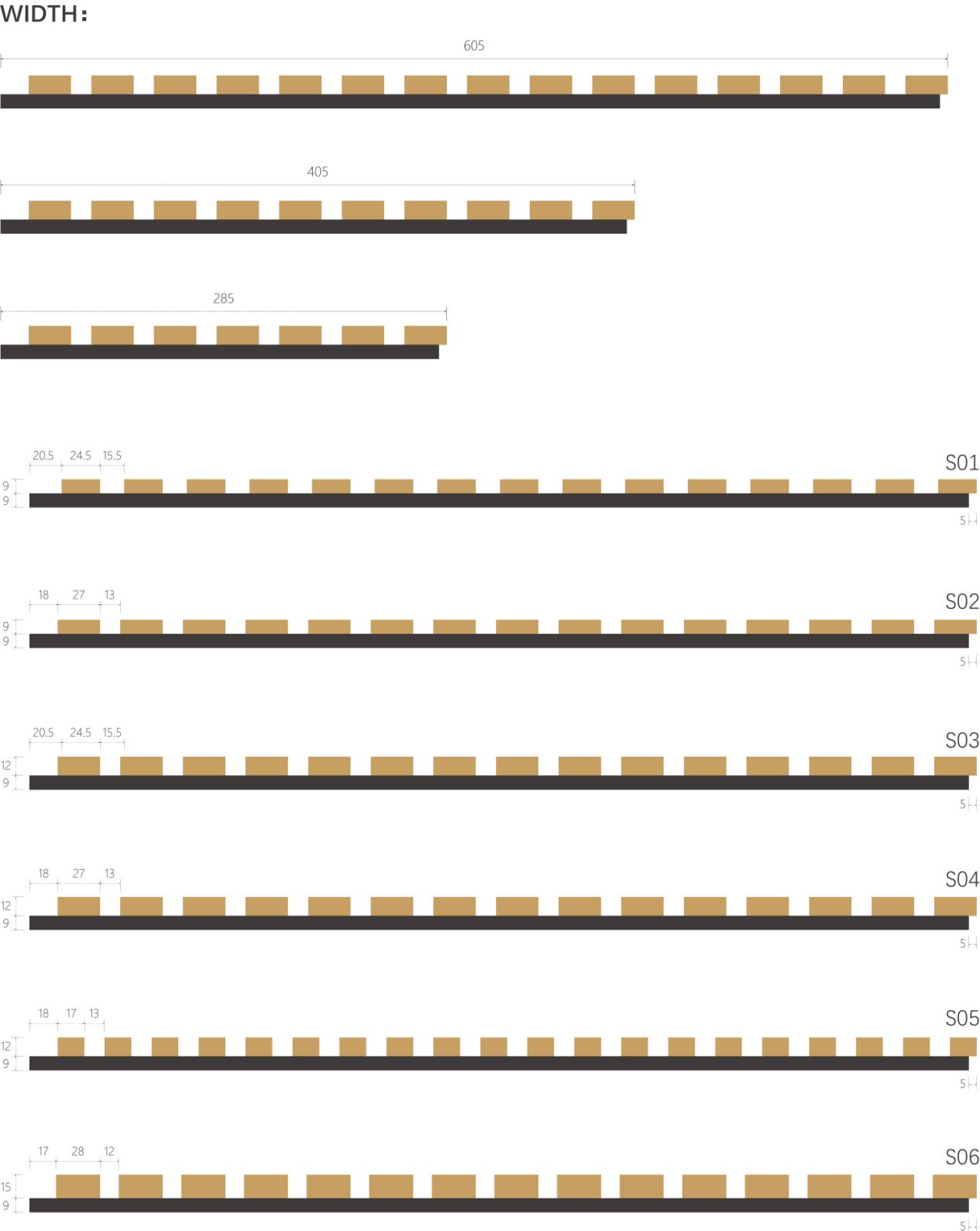

Width
285/405/605 mm
Thickness
18/21/24mm
Eco-friendly
CARB P2
Fire resistance
EN 13501CLASS B, ASTM E84 CLASS A(Only PET Fiber)
Noise reduction coefficient
0.8
Installation
Screws or Glue




Performance Characteristics

Efficient sound absorption: The porous structure of polyester fiber can effectively absorb sound waves, reduce echo and reverberation, and the noise reduction coefficient is approximately 0.8-1.10. It can be widely used in places with high sound quality requirements, such as auditoriums, conference rooms, recording studios, etc.

Fireproof and flame retardant: After inspection by the National Fire Testing Center, it meets the requirements of the national standard GB8624 B1 level and has good fire resistance performance, suitable for crowded public places.

Environmental protection and health: The polyester fiber and MDF materials used in some products meet the Oeko tex standard of 100, with low formaldehyde emissions that can reach E0 and E1 environmental standards, and are harmless to human health.

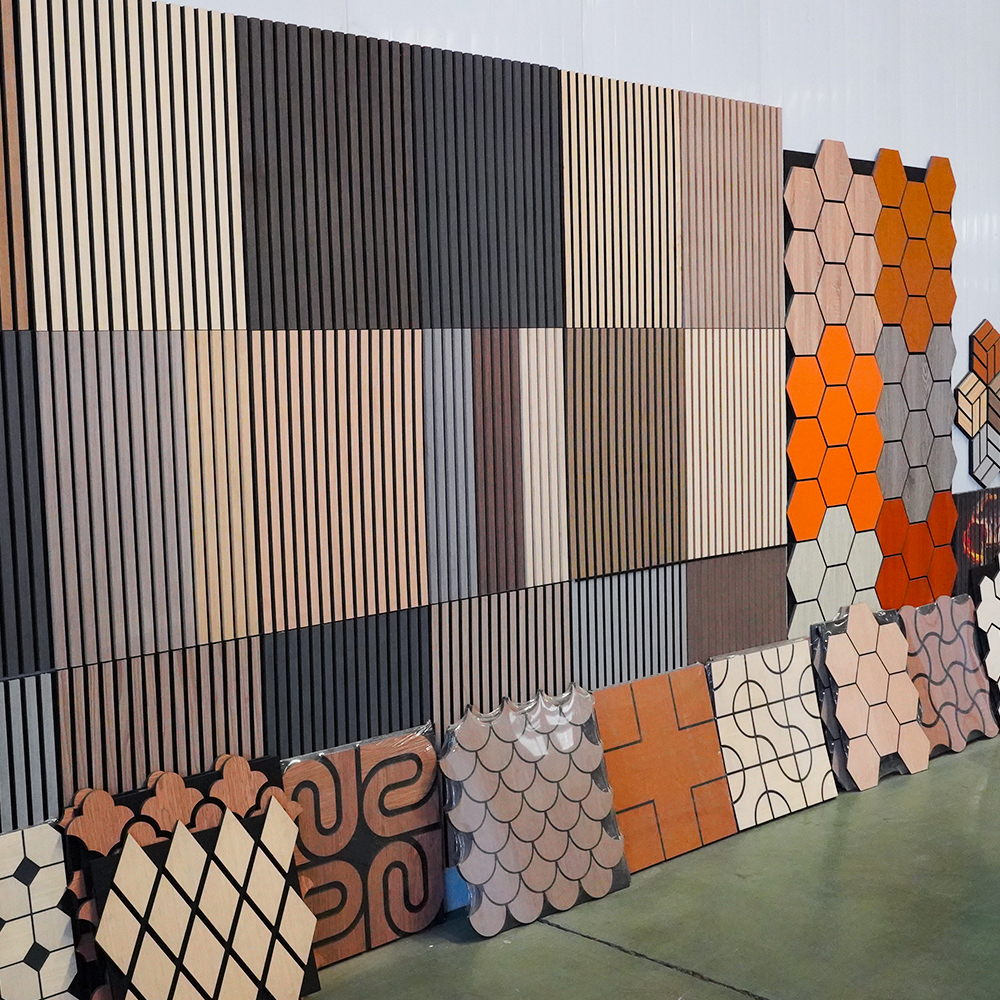

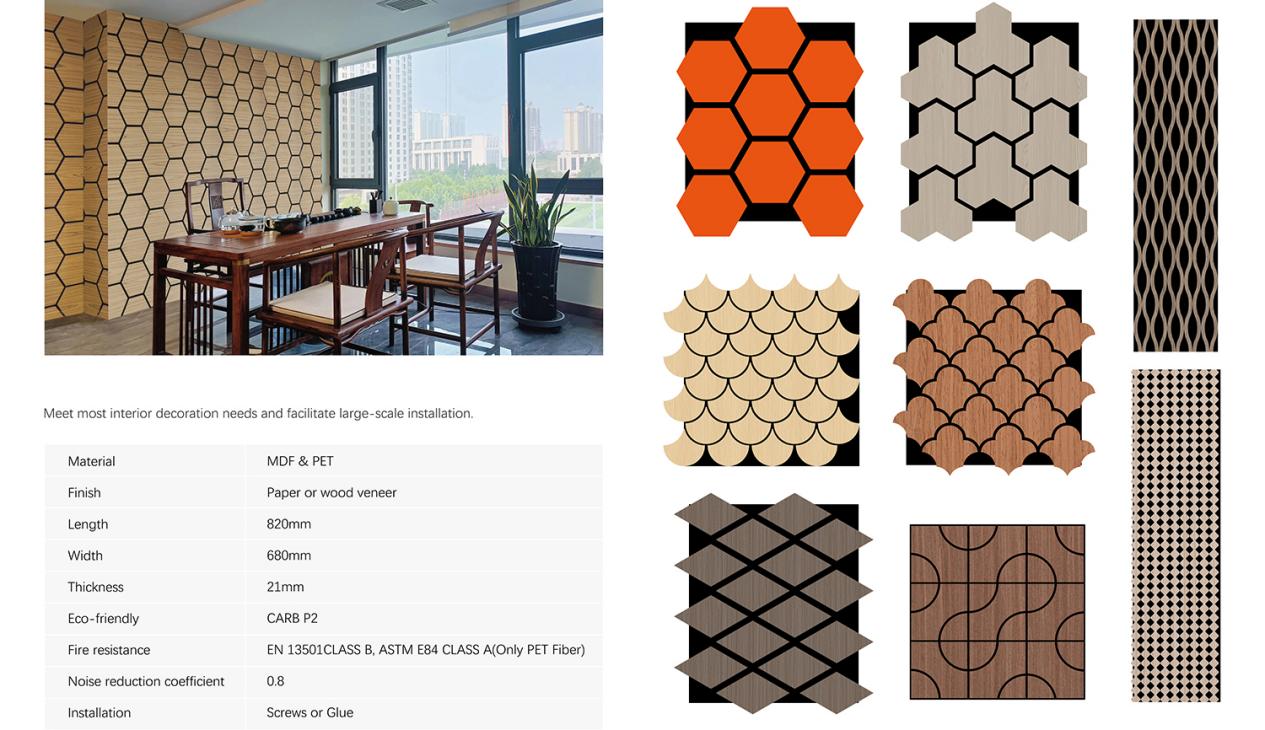

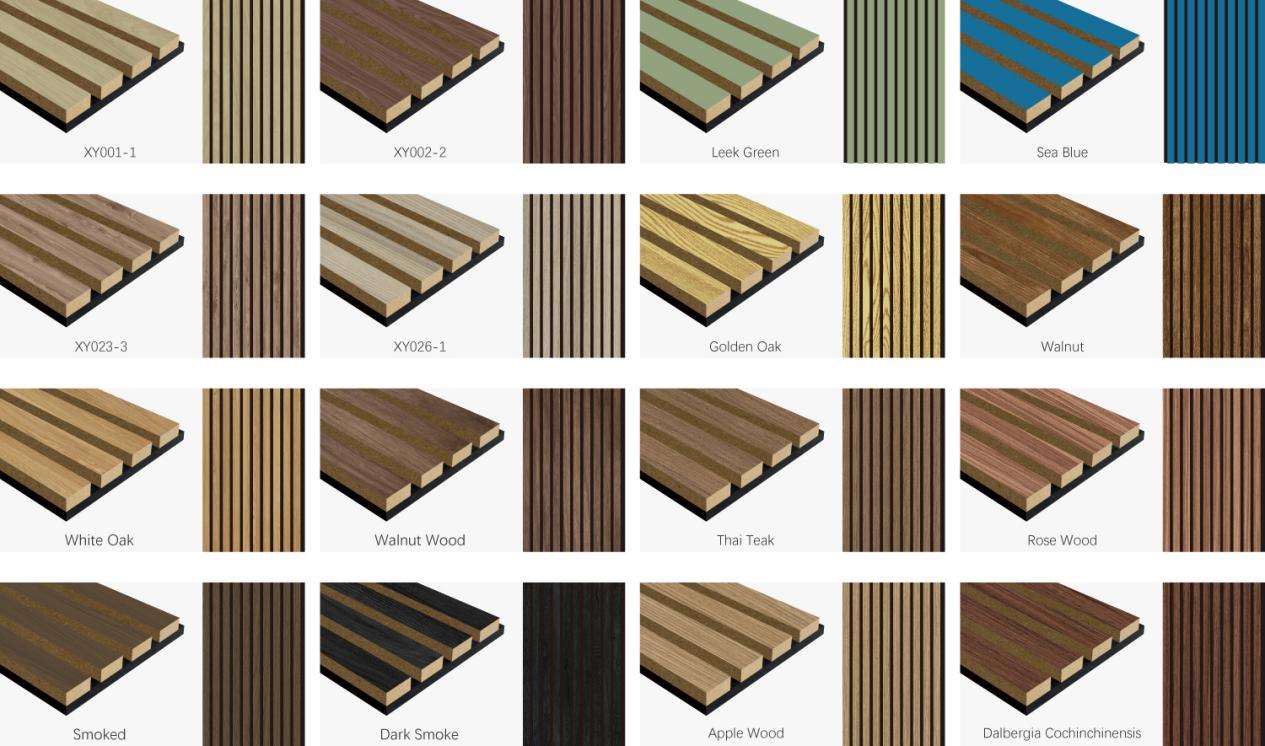

Highly decorative: There are multiple colors to choose from, such as 48 color products, which can also be treated with different surface treatments, such as melamine, veneer or HPL, to present different textures and styles, meeting various indoor decoration needs.

Easy installation: Generally, a simple clip on system can be used for installation, which can be easily installed on walls, ceilings, and other parts, with high construction efficiency.

Durable and easy to maintain: MDF wooden grille provides a sturdy and durable surface that is not easily damaged. Daily cleaning only requires a vacuum cleaner, duster, or damp cloth to wipe.

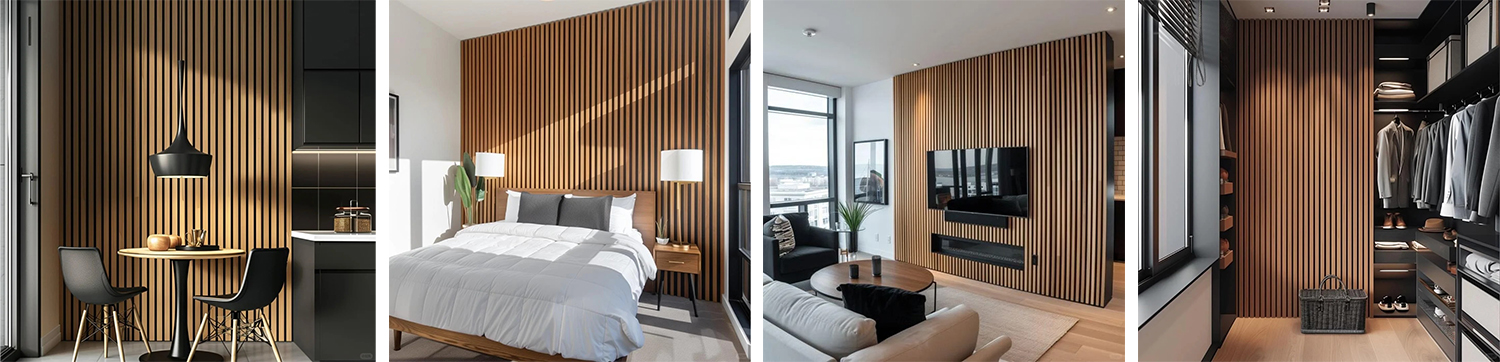

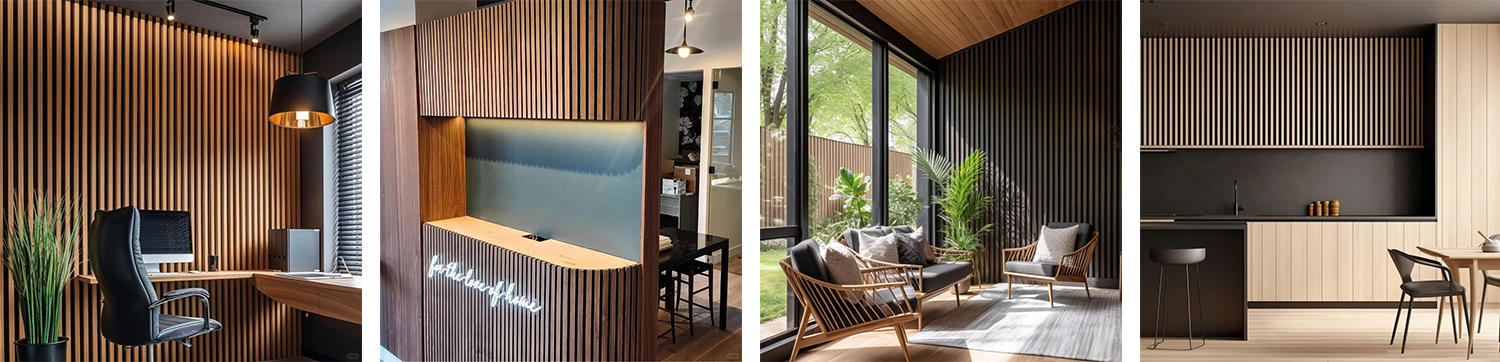

Application scenarios

Suitable for office buildings, cinemas, hotels KTV、 Various places such as theaters, classrooms, and libraries can improve the acoustic environment and enhance the decorative effect of the space.
